4. Control Flow

So far, our programs have been boring (we figured out how to use a calculator, yay), let's make them more interesting with loops, and control flow. All control flow is done with branches and jumps.

_main_loop:
    # clear screen
    # draw one thing
    # sleep
    # eat
    # draw another thing because why not
    j _main_loop # j stands for jump, this is an infinite loop

Convention

Start labels with _ unless they are functions or variables. Labels are a memory address to a place in memory.

Conditional Branches

Instruction	Meaning
`beq a, b, label`	`if (a == b) { goto label }`
`bne a, b, label`	`if (a != b) { goto label }`

a must be a register, b can be a register or immediate.

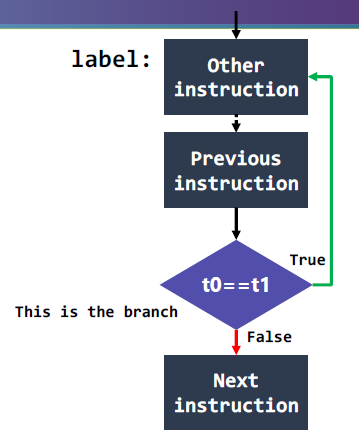

Alt text

Danger

WHEN WRITING LOOPS, WRITE PSEUDOCODE AND IGNORE THE INSIDE STUFF. TRANSLATE THE CONTROL FLOW TO ASM FIRST!!!!!!!!!!!!!!!!!!!!

Jumping

In Java/C you jump over a condition when it is FALSE

In ASM, you jump over a condition when it is TRUE

# if (s0 == 30) {
#   block A
# }
# block B
    bne s0, 30, _blockB
_blockA:
    # block A
_blockB:
    # block B

# if (s0 == 30) {
#   block A
# } else {
#   block B
# }
# block C
    bne s0, 30, _blockB
    # block A
    j _blockC
_blockB:
    # block B
_blockC:
    # block C

More branch instructions

Instruction	Meaning
`bltz a, label`	`if(a < 0) { goto label }`
`blez a, label`	`if(a <= 0) { goto label }`
`bgtz a, label`	`if(a > 0) { goto label }`
`bgez a, label`	`if(a >= 0) { goto label }`

Also,

Instruction	Meaning
`slt c, a, b`	`if(a < b) { c = 1 } else { c = 0 }`

Set if Less Than: register c will be set to 1 if $a < b$, otherwise register c will be set to 0. Using slt with bne and beq we can inplement all conditionals: $a=b$, $a\neq b$, $a > b$ $a \geq b$, $a < b$, and $a \leq b$.

Or just use the pseudo-instructions,

Instruction	Meaning
blt a, b, label	if(a < b) { goto label }
ble a, b, label	if(a <= b) { goto label }
bgt a, b, label	if(a > b) { goto label }
bge a, b, label	if(a >= b) { goto label }

$a$ must be a register, but $b$ can be a register or immediate.

Complex Conditions

To use ands:

# if (s0 == 30 && s1 > 1) {
#   block A
# }
    bne s0, 30, _skipA
    ble s1, 1, _skipA
    # block A
_skipA:

To use ors:

# if (s0 == 30 || s1 > 1) {
#   block A
# }
    bne s0, 30, _blockA
    ble s1, 1, _skipA
_blockA:
    # block A
_skipA:

Loops

Loops are similar to conditionals, we want to leave the loop when the opposite of what ever the condition is.

# for(int i = 0; i < 10; i++) {
#   print(i);
# }
    li s0, 0
_loop_top:
    bge s0, 10, _carry_on

    move a0, s0
    li v0, 1
    syscall

    addi s0, s0, 1
    j _loop_top
_carry_on:
    # more code

# while(s2 < 10) {
#   stuff
# }
# more stuff
_loop_top:
    bge s2, 10, _more_stuff
_stuff:
    # stuff
    j _loop_top
_more_stuff:
    # more stuff

Wait, don't forget about continue and breaks!

    li s0, 0
_loop_top:
    bge s0, 10, _loop_break

    move a0, s0
    li v0, 1
    syscall
_loop_continue:
    addi s0, s0, 1
    j _loop_top
_loop_break:
    # carry on
